JMC Papertech is promoted by group of experienced industrialist and Technocrats with successful track record and reputation. Initially company was involved in heavy fabrication and vessels and later on switched over to machineries for cement industries. Later on company started manufacturing spherical rotary Digester, fabricated drying cylinders and M.S. Yankee Cylinders on demand of paper industries. On the constant demand of these Cylinder, Paper industry encouraged company to start fabrication of other machine pats and with their support and technical know- how from paper mill designers, company successfully started manufacturing complete Plant for making all Type of paper up to capacity of 10 -200 TPD

Ask for Price

Salient Features

• Medium Consistency Pulper for slushing of all type waste paper and machine Broke.
• It is continuos type Pulper having very good efficiency
• Pulper is provided with S.S. perforated screen plate hole diameter upon the quality of Raw material.
• Pulper is available in all sizes suitable for requirement
• Suitable Belt Conveyor is supplied for feeding of the raw material (Optional)
• Ragger to remove spinning materials like wire, rags, strings etc., by means of a ragger rape.

Salient Features

• High Consistency Pulper is suitable for slushing of all type of waste paper at consistency range of 13-18% with minimum fines generation.
• It is a batch type Pulper having very good difibration effect.
• Pulper is provided with a Dilution Pulper with screen plate for removal of non fibrous material, screen plate perforation depending upon the quality of Raw Material.
• Most efficient separation of fiber and Contaminants with breaking them up making their Subsequent removal easier.
• The Quality of disintegrated stock translates in to energy saving in terms by refining power.
• Less floor space compare to conventional Pulper assuming the same daily production.
• The low peripheral rotor speed promotes an energy transfer exclusively by friction without shocks nor shearing effect.

Slashing Vol.	Gross Vol.	Capacity* TPD	Recommended Motor Rating (KW)KW
4 M³	5.2 M³	25	90
5 M³	6.5 M³	32	110
6 M³	7.5 M³	36-40	125
8 M³	10.2 M³	45-50	160
10 M³	13 M³	60-65	250
12 M³	15 M³	70-75	265
15 M³	19 M³	90-95	300**
18 M³	23 M³	105-110	350**
22 M³	29 M³	120-140	450**

* Calculated based on recycled wastepaper (Note Books, Magazines etc.) at 15% operating Consistency. ** Gearbox Drive

Ask for Price

Ask for Price

Ask for Price

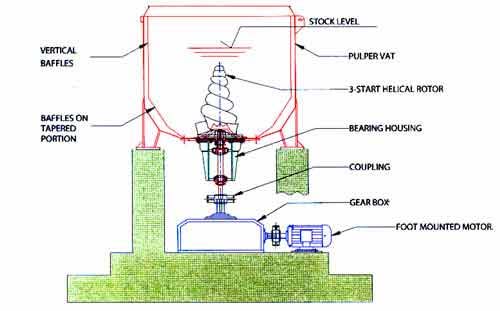

Salient Features

• Recommended 18m and Above Pulper.
• Pulley Drive Beyond 370 Kw is not Recommended Due to High Belt Pull on Motor shaft
• Simple Installation with Horizontal Motor (B3) Instead By Vertical Flange Mounting (V1)
• Standard Horizontal Motor Easily Available with Cheaper Price Compared to identical Rating of Vertical Mounting
• No. of V-Belt Is More and Pulley Width Become wider Than Motor Extended Shaft Create Mounting Problem.
• Due to Heavy Weight and Abnormal Size Very Difficult to Handle
• Saving on Consumable like Belts.
• No. Powerloss on Gearbox.
• Easy Starting and No Belt Slippage.
• Standard Gearbox and Motor.
• No. Jackshaft nor Additional Support.
• Easy Erection And Elignment (No Sliding Arrangement on Motor)
• Can also be installed on Smaller Volume of Pulper,

Ask for Price

Salient Features

• Efficient Separation of Heavy contamination by Centrifugal Force.
• Min. Fiber Loss
• Lighting arrangement for complete visibility of separation Process.
• Clogging free operation.

Model	HDC 50	HDC-M 50	HDC 100	HDC-M 100	HDC-M 100	HDC-M 150
Inlet Pressure Kgs/Cm²	2.5-3	2.0	2.5-3	2.0	2.5-3	2.0
Pressure Drop Kgs/Cm²	0.75-1	0.5	0.75-1	0.5	0.75-1	0.5
Operating Consistency %	2-3	3	2-3	3	2-3	3
Through put LPM	500	500	1000	1000	1500	1500

Customized HO Cleaners up to 4000 LPM are also manufactured.

Ask for Price

Salient Features

• Effective separation of heavy and light impurities.
• Minimum fiber loss.
• Easy Maintenance
• The body is made out of Stainless Steel with base frame and stiffeners in Mild Steel. Economy model is fabricated totally in Mild Steel with 55 cladding in the feed chamber.
• A force Vortex is formed in the Separator by the 5.5, rotor. The heavy particles are carried outward by Centrifugal force in to the junk trap. The rotor and Screen are designed to slush paper chips and remove all the non fibrous material which goes out as light reject and further treated in secondary separator or Johnson Screen.
• The accept stock passes through the screen fitted behind the rotor.

Type	TS600	TS500	TS400	TS300
Capacity TPD	60-70	40-50	15-30	8-15
Power Required KW	60-75	45-55	22-30	7.5-12

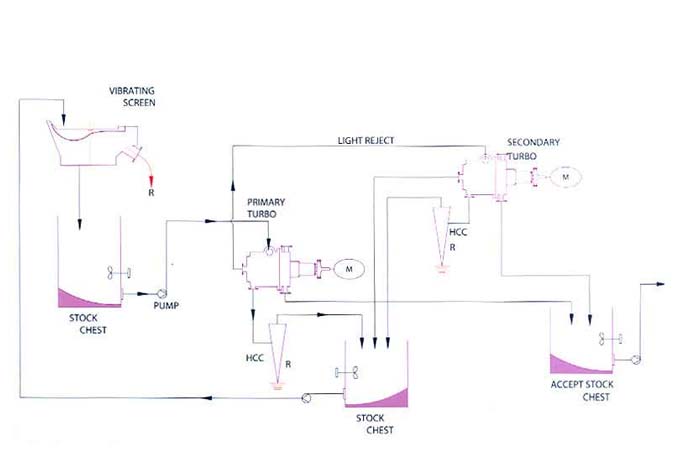

Salient Features

• Most Efficient system for Kraft and Board Mills
• Two Stage Turbo and Cleaner make quality pulp
• Operating Consistency 3-4%
• HCC with Auto reject Discharge System
• Suitable system above Plant Capacity
• Turbo with Cylindrical Body and perforated screen Plate

Ask for Price

The ideal screen for waste paper stock preparation (white and brown grade). The special rotor design allows the screen to operate at 3 -4.5% consistency. The stock suspension is screened through a screen drum having perforation or slot

Salient Features

• JMC offers gland or mechanical seal (option) arrangement.
• Complete 55-304 construction.
• Efficient separation of contaminants.
• Low power consumption.
• Exceptional improvement in screening efficiency.
• Improve quality of paper.
• Dependable paper machine operation.
• Excellent manufacturing fitness.
• Easy change over of Belt and pulleys in minimum time.
• Heavy & sturdy construction.

Model No.	Hydraulic LPM	Capacity* TPD	Motor Rating: KW
JSVM 05	2600	130	37
		Perforated Bas.
JSVM 05	1800	90	37
		Slotted Bas.
JSVMW 04	1700	Perforated	11

* Depending on stock, grade, consistency and screen perforation / screen slot application

• J-JMC
• S-Screen
• V-Vertical
• M- Medium Consistency
• W- Washing Cycle
• Present manufacturing range other models are under development.

Ask for Price

Product Details

Capacity	Automatic Grade	Brand/Make
100 TPD to 400 TPD	Automatic	JMC MAKE
